CKD9C Locomotive Spare Parts Including Diesel Crankshaft Spacer Bearing
| Place of Origin | CHINA |
|---|---|
| Brand Name | HTR |
| Minimum Order Quantity | 1 PCS |
| Price | Negotiable |
| Delivery Time | 15 to 20 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | CKD9C Locomotive Spare Parts | Gauge | 1520mm |
|---|---|---|---|
| Wheel Diameter | 1050 Mm | Axle Load | 23t |
| Engine Power | 2650kW | Dimension | 22240*3337*4736 Mm |
| Max Speed | 100 Km/h | Max Tractive force | 435 KN |
| Highlight | CKD9C Locomotive Spare Parts,Locomotive Spare Parts Diesel Crankshaft,CKD9C Locomotive Train Parts |
||
Product Description
CKD9C Locomotive Spare Parts Exported to
Product Overview

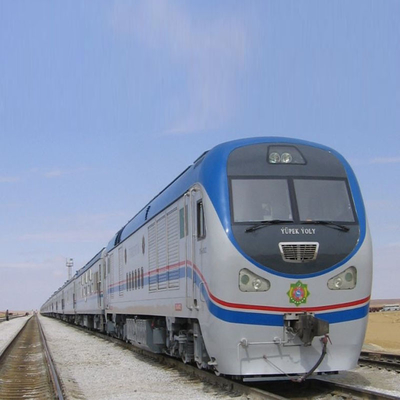

The CKD9C is a broad-gauge diesel-electric AC-DC transmission locomotive used for purpose of mainline passenger and freight which exported widely to Turkmenistan, Kazakhstan, Mongolia and North Korea etc . This locomotive consists of two identical locomotives by stationary coupled locomotive A and B, which can be uniformly controlled in any cab. This locomotive is installed with 16V240ZJB diesel engine, and its service power is 2430kW and Max. operating speed is 100km/h. The locomotive is equipped with microcomputer control system and dynamic brake device with function of full-power & self-load.
Product Specification
| Diesel Locomotive | CKD9C |
| Gauge | 1520mm |
| Transmission | AC-DC |
| Axle Arrangement | Co-Co |
| Wheel diameter | 1050mm |
| axle Load | 23(1±3%)t |
| Service Weight | 135x(1±3%)t |
| Engine Power | 2650kW |
| Max speed | 100km/h |
| Continuous Speed | 21.6km/h |
| Max Tractive force | 435kN |
| Tractive force | 324kN |
| Min.Radius of Curvature Negotiated | 125m |
| Fuel tank capacity | 9000L |
| Coupler Center Height over the Track Surface | 1050mm+3/-1mm |
We mainly provide locomotive spare parts including:
Part List
| 1 | Diesel crankshaft 12V280 (Ф28О) | (ZJN17-31-00-000 (12280Р10600000)) |
| 2 | Camshaft right assy 12V280 | 12280Р11000000 |
| 3 | Left camshaft assy 12V280 | 12280Р11000000 |
| 4 | Diesel Anti-Vibrator 16V280 | QSС7А-22-00-000 |
| 5 | Cylinder sleeve 16V280 | QSС7-11-00-006 |
| 6 | Cylinder cover assy diesel 16V280 | QSС7-31-00-000 |
| 7 | Piston assembly OP8V (16V280) | QSС7А-24-00-000 или QSС7-24-01-000 |
| 8 | Piston pin assembly | QSС7А-24-02-000 |
| 9 | Diesel fuel filter element 16V280 | QSС7-44-00-000 |
| 10 | 16V280 diesel oil blower filter element | JLQ-16F1 |
| 11 | Cardan shaft (1) CKD9C | QSJ9-40-04-000 |
| 12 | Cardan shaft (2) CKD9C | ZJJ35-35-02-000 |
| 13 | Cardan shaft (2) CKD9A | QSJ17-40-60-000 |
| 14 | Heat exchanger for water and oil | QSJ10-13-10-000-1 |
| 15 | Heat exchanger for water and oil | ZGJР 58-00-000 |
| 16 | Fuel priming pump CKD9A | QSС7-11-00-006 |
| 17 | Middle bearing (bottom) | DLС8-42-10С |
| 18 | Spacer bearing | DLC8-42-14 |
| 19 | Bearing | DLC8-42-15 |
| 20 | Main generator clutch bearing DF-8B (TQFR-3000) | Е32626ОТУ или №6236 |
| 21 | JZ-7 Automatic Brake Valve (Driver's Crane) | TPJ90-00-000 #1 или TPJ92-20-00 |
| 22 | Separate JZ-7 Brake Valve (Operator Auxiliary Valve) | TPJ90-00-000 #2 или TPJ90-00-00 |
| 23 | Electromagnetic contactor (train) | QСС1-08.10 |
| 24 | Power contact of the electromagnetic contactor | QСС1-08.10 |
| 25 | Electromagnetic contactor (rheostat) | QСС1-08.08 |
| 26 | DC Contactor (QC) (Starting) | QCC1-01.08 |
| 27 | DC contactor (YC) (compressor) | QCC1-01.04 |
| 28 | Electromagnetic contactor contact | QCC1-15.10D (Q259.03.00.00) |
| 29 | DC contactor (oil pumping) | S1958Е-80V-В |
| 30 | DC contactor | S140А-2-110V-В |
| 31 | Electrical contactors | QСС 1-08.08 или LC |
| 32 | Electrical contactors | QСС1-10.08 или LLС |
| 33 | Power contact of the current contactor | S1001 �6-РВ-44-80V-В |
| 34 | Exciting contactor | QCC1-01.06 |
| 35 | Fuel pump contactor | CZQ-40/22 |
| 36 | Electromagnetic compatible motor apparatus | QJR-400 |
| 37 | Voltage regulator | TTY-3H |
| 38 | Outlet tee | QSC7-61C-03A-100 |
| 39 | Directional switch (reverse) | YKH3Q51 |
| 40 | Failure switch | QKZ01-32002/5 |
| 41 | Earthing switch | QKZ01-32002/5 |
| 42 | Light switch | QKZ01-24004/5 |
| 43 | Louver switch | QKZ01-32002/5 |
| 44 | Electro-pneumatic valve for dryer | DPW или FKIВВМ-900kPa |
| 45 | Diesel speed indicator | LZ-807 300-1500 rpm |
| 46 | Tachometer fuse | EGS3/8 |
| 47 | Driver's cab lighting lamp (bright) 110V / 20W | 110V/20W |
| 48 | Color display | ТРХ10А1 (ZS599В-000-000) |
| 49 | Manitor | ТРХ10А2 |
| 50 | LKJ-2000 TPX10A3 Continuous Automatic Locomotive Alarm Display | ТРХ10АЗ (ТЕ6221100000) |
| 51 | Tile of plug-in blocks of the computer No. 10 (ZS456-340-000) | ZS456-340-000 или FE840А1 для выхода цифровой информации |
| 52 | Tile of plug-in computer blocks No. 12 | ZS848-210-000 или FE112А1 для перехода давления |
| 53 | Tile of plug-in computer blocks No. 13 | ZS848-220-000 или FЕ851В для оброботки информации эмитации |
| 54 | Computer color display CPU panel | 7РХ10А1 |
| 55 | Power supply module 253 (power panel) | ZS164-199G-000 |
| 56 | Memory panel (module 254) | ZS164-160G-000 |
| 57 | ARM CPU LKJ-2000 Board | W60000000(ТРХ10Д1) |
| 58 | Microprocessor cabinet CKD-6E | CFWJ-2 |
| 59 | Traction Motor (ZQDR-410) | ZQDR-410 |
| 60 | Large Wheelset Gear (CKDC9) | QSJ11-52-20-004(Z) |
| 61 | DF4B traction motor large armature bearing | Е32426QTU или (Е32426QTY) ZQDR410-1 |
| 62 | Small armature bearing of DF4B traction motor | 92417QTU или (92417QTY) ZQDR410-2 |
| 63 | Boom assembly | QSJ7-57-03-000 |
| 64 | Axle leash | ТZ024000-87 |
| 65 | Bolts in the wedge of the automatic coupler hook type CA-3 | НТ98-00-91 |
| 66 | Balancing beam | ZJJ35-73-10-001 |
| 67 | Fuel priming pump motor | Z2-12 |
| 68 | Supercharger (ZN315 LSTK) for diesel 12V280 | (ZN315LSTK) |
| 69 | Turbocharger (DF8) | ZN310A3 (DF8) |
| 70 | VTM impeller | QSJ7-11-05-100 или QSJ11-70-17-122 |
| 71 | Bearing (3E 176318QKT) | 3Е 176318НКТ- ZBJ11001-87 |
| 72 | Body fan motor | 110SZ60/А1 ZY130-400 |
| 73 | Excitation motor DF8B | JGL-405В |
| 74 | LKJ 2000 Recorder Locomotive Computer Data for LKJ-2000 System | LKJ 2000 |
| 75 | Speed controller (302-Z) | ZJPT32-00-00-000 или ZJPT9-00-00-000 |
| 76 | Driven gear of the regulator of the number of revolutions | DLC8-53-45 |
| 77 | Locomotive alkaline batteries | GNC-210 (1,2V 210Ah) |
